Szczegóły Produktu:
|
| Warunki: | Nowy | Kompresor: | Półhermetyczny typ tłokowy |
|---|---|---|---|
| Wyjście dzienne: | 1000 kg ~ 30 000 kg | Średnica rury lodowej: | 22mm, 28mm, 35mm |
| Kontrola: | Niemcy Siemensa | akcesoria elektryczne: | Korea Południowa LG |
| Zawory rozprężne: | Dania Danfoss | Zawory elektromagnetyczne: | Włochy Castal |
| Operacja: | Ekran dotykowy | ||
| Podkreślić: | Tube Ice Machine,Ice Tube Maker |
||
| Model | Ice Making Capacity | Rated Power | Circulationg Water Pump Power | Cooling Water Pump Capacity | Cooling Fan Capacity | Ice Cutter Motor | Machine Dimension | Weight of Machine |
|---|---|---|---|---|---|---|---|---|
| No. | Ton/24h | Kw | Kw | Kw | Kw | Kw | WxHxL(mm) | KG |
| TV10 | 1.0 | 4.28 | 0.55 | 1.1 | 0.18 | 0.75 | 1100x900x1760 | 900 |
| TV20 | 2.0 | 7.77 | 0.55 | 1.5 | 0.37 | 0.75 | 1250x1000x1950 | 1200 |
| TV30 | 3.0 | 12.33 | 1.1 | 1.5 | 0.56 | 0.75 | 1400x1100x2200 | 1500 |
| TV50 | 5.0 | 21 | 1.5 | 2.2 | 0.75 | 1.5 | 1600x1400x2250 | 1800 |
| TV100 | 10.0 | 29.2 | 1.5 | 4 | 1.5 | 1.5 |
1200x1200x3100 2300x1550x1800 |
3500 |
| TV150 | 15.0 | 49 | 2.2 | 5.5 | 1.5 | 1.5 |
1500x1200x4500 2700x1950x2250 |
4250 |
| TV200 | 20.0 | 58.5 | 2.2 | 5.5 | 2.2 | 2.2 |
1600x1300x4700 3100x2200x2250 |
6500 |
| TV300 | 30.0 | 87.6 | 2.2 | 15 | 2.2 | 2.2 |
3000x2200x2500 2200x1900x6200 |
7200 |

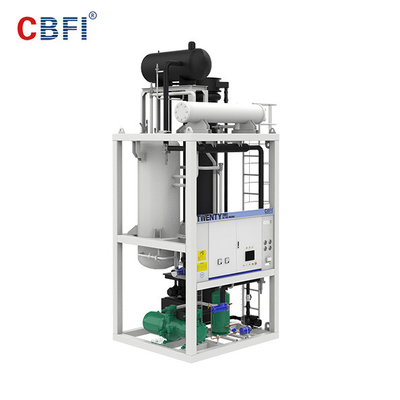

CBFI tube ice machine aplication
