380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption

380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption
380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption 380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption 380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption 380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption 380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption

Duży Obraz :  380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: CBFI
Orzecznictwo: CE
Model Number: TV
Zapłata:
Minimum Order Quantity: 1 set
Cena: 4000 USD
Packaging Details: wooden box
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month

380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption

Opis
Material: 304 stainless steel Power supply: 380V/50HZ/3P etc.
Refrigerant: R507 or R404A Compressor: Germany
Ice diamter: 22mm,29mm,35mm
High Light:

Tube Ice Machine

,

Ice Tube Maker

CBFI

304 stainless steel tube ice machine for human consumption​


Product Description


TV Series Tube Ice Making machine

  • Tube ice is a regular cylinder ice that has hollow in the central section of the ice.
  • The outer diameter is 22mm, 28mm, 35mm, the height can be 30mm to 45mm.
  • The inner diameter can be adjusted to the time by which the forming of the ice is required.
  • The tube ice has the advantages of big thickness, good-looking, long-time storage, not easy melting and good permeation.
  • Mainly used in daily diet, keep fresh for vegetable, fruit and aquatic products.

380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption 0

TV Series Tube Ice Maker Machine Models for Reference


Item No.ProductionCompressor Rated PowerCirculating Water Pump PowerCooling Water Pump PowerCooling Fan PowerIce Cutter Motor Power


Machine
Dimension


Weight of Machine

 Ton/24HKWKWKWKWKWL*W*HKG
TV101.03.690.371.10.180.751320*950*1800900
TV202.07.110.551.10.180.751400*1100*18001200
TV303.09.680.551.10.370.751500*1100*19501500
TV505.017.470.551.50.750.751600*1250*22001800
TV10010.030.890.752.21.51.51700*1300*22003500
TV15015.042.61.52.22.21.53000*1500*22004250
TV20020.053.21.52.22.21.53500*1500*22006500




Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature and ambient temperature.



TV Series Tube Ice Maker Machine Features

1. Installation of ice tube machine is easy, only need connect water, power for the machine. All testing work will be finished in our factory.
2. Ice making water formed ice in the stainless steel round plate, then, automatically enter into ice falling off procedure, the whole process control by PLC program control, no need people monitor.
3. Evaporator of tube ice machine is round plate type, so, the machine is space save.
4. Ice outgoing automatically, can connect with automatically ice packing machine or converyor belt.
5. All surface that contact with water or ice are stainless steel or other rust-resistant material insured the sanitation of tube ice.

380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption 1

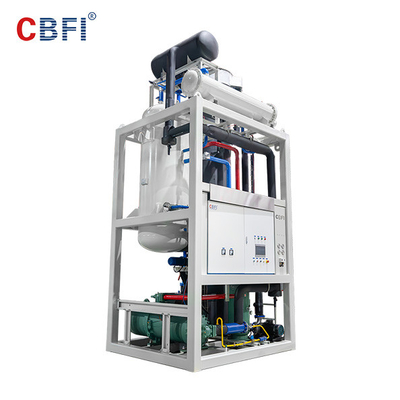

TV Series Tube Ice Maker Machine Pictures
380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption 2
380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption 3
380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption 4
380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption 5
380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption 6
380V 50HZ 3P 304 Stainless Steel Cuboid Tube Ice Machine For Human Consumption 7
